|Διαστάσεις||35 × 25 × 15 cm|

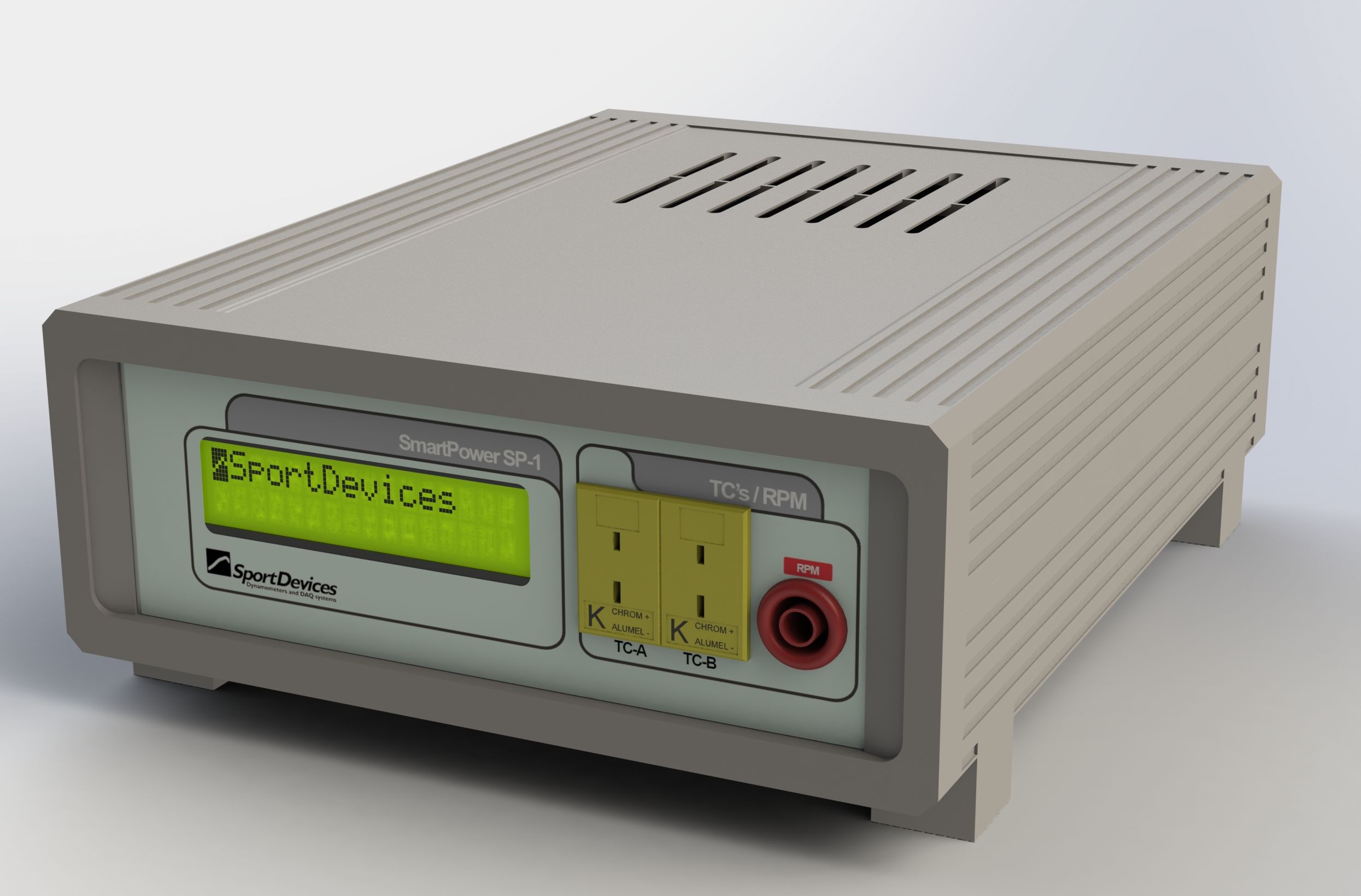

SP-1 V4 Inertia Electronic Kit Software and electronics kit for inertial dyno. (No mechanical parts included)
- Dyno operation controlled by on dyno button, or from the computer
- Real time on screen display test results. Tests appears in the screen while the engine accelerates.
- See graphs simultaneously: show or hide any curve.
- Really accurate and detailed curves: see engine failures easily.
What is new in V4?
- More connectors and analog channels:
- 2 thermocouple inputs (in the front)
- 4 analog inputs (at rear)
- 2 counter inputs (available under request)
- 2 servo outputs (available under request)
- additional engine rpm input (0 to 5 volt), suitable to be connected to ECU output or inductive clamp adaptor.
What is new in V3 and 3b?
- Enhanced engine RPM input circuit. Hi sensibility for traditional ignition and new ignitions (on-spark coils). Noise protection.
- 2 General purpose analog inputs 0-5v, suitable for lambda probe
Διαθέσιμο κατόπιν παραγγελίας
Κωδικός προϊόντος: 99998980980 Κατηγορία: SportDevices
